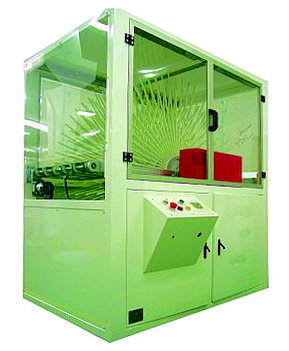

　Auto stacker AS13-10

‧Function

-This equipment suits to use after dry or moist module processes for corresponding to the requests of  inspection and dispersing heat.

‧Main characters

-ø8 glass fiber bar using for supporter to correspond to the requests of rigidity and verticality
-European standard covering style design in whole machine and no particle interference
‧Boards size

Maximum：610 x 610 mm ( 24 x 24” )
Minimum：305 x 305 mm ( 12 x 12” )
Thickness：0.05〜3.2 mm
‧Machine size

Length：1740 mm
Width：1000 mm
Height：1850 mm
‧Maximum producing abilities

8 pics/ moment
‧Working height

1050±30 mm
‧Factory affair requests

220V /60Hz/500W 3ø 6kg/㎝² 50L/min
‧Operating mold and system

-PLC:MITSUBISHI FX system. Staying online contact
-Simple switch and button for operating
