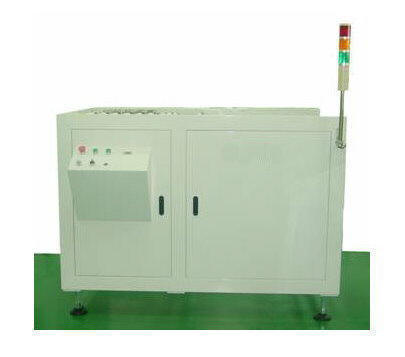

-This equipment is used to take out the board on L-RACK and set on transportation, sending to next process.

-Automatic L-rack out and in materials
-Including lifting board divided
-Including two boards inspection
-MC paling stand for transportation. oblique gear wheels transmission. It's easy to keep up to dismount every single roller.
-Rollers concluded by PE ROLLER won't scrape boards and include locating  shooting centre function .

1.Oil pressure wide cart

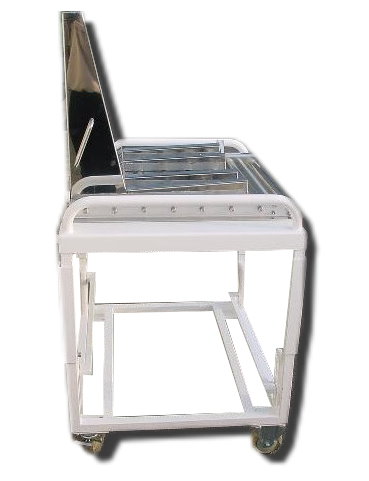

2.L-Rack
3.You could choose to change in humanized operating interface facilities. (Proface)

Maximum：610 x 610 mm ( 24” x 24” )
Minimum：305 x 305 mm ( 12 x12” )
Thickness : 0.5〜3.2 mm

Length：1680 mm
Width：1200 mm
Height：1100 mm

8 pics/ moment

1050±30 mm

220V/60 Hz/1 KW
Air compression：6 bars
Amount of air comsumption：300 liters / min

-PLC:MITSUBISHI FX system. Staying online contact
-Simple switch and button for operating
